| Business Price: |
View Latest Price
₹4600.00 + GST
₹5428.00 incl. GST Delivery charges may apply. Contact for bulk orders. |
| Stock Availability: | Out of stock |
Product Specification
| ITEM CODE | Nitto 923S |
|---|---|
| ITEM NAME | Nitto 923S High-Temperature PTFE Adhesive Tape | Nitto Heat-resistant Tape - 923S | Nitto 923S High-Temperature Flame-Retardant Adhesive Tape |
| DIMENSIONS | Width: 38mm, 50mm; Length: 33m and 0.10mm thickness, available in various widths and lengths |
| ITEM WEIGHT | Varies by size |
| MATERIAL | PTFE (Polytetrafluoroethylene) film with silicone adhesive |
| FINISH | Non-adhesive PTFE-coated surface |
| BRAND | NITTO |
| COO | Made in Japan |
| Category | Industrial Adhesive Tapes |
Product Description

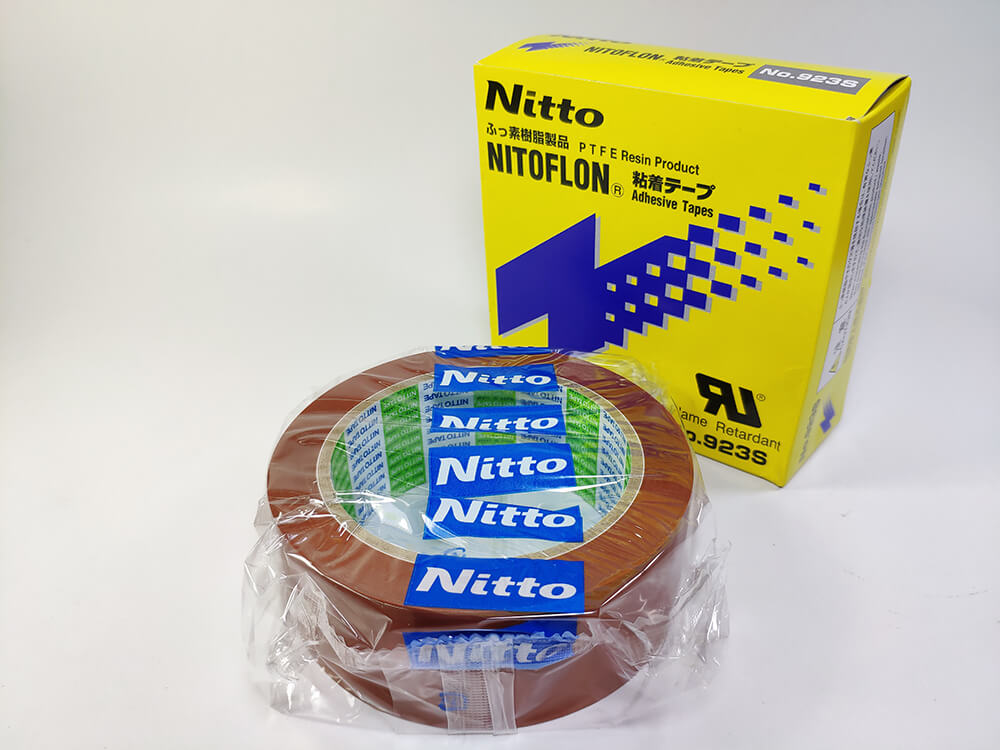

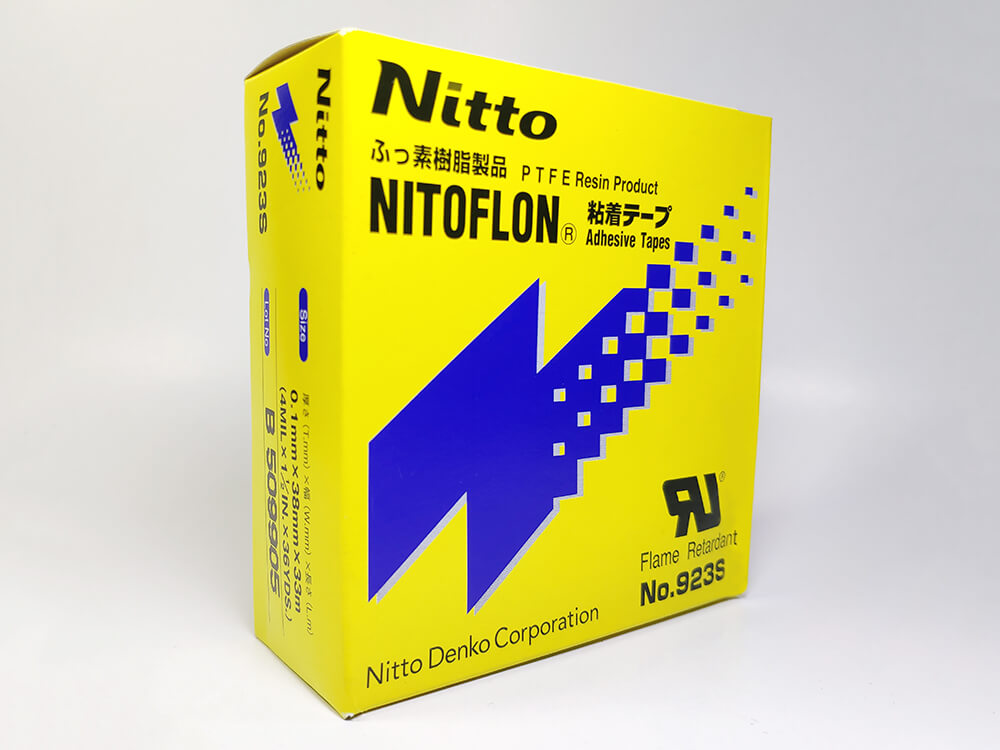

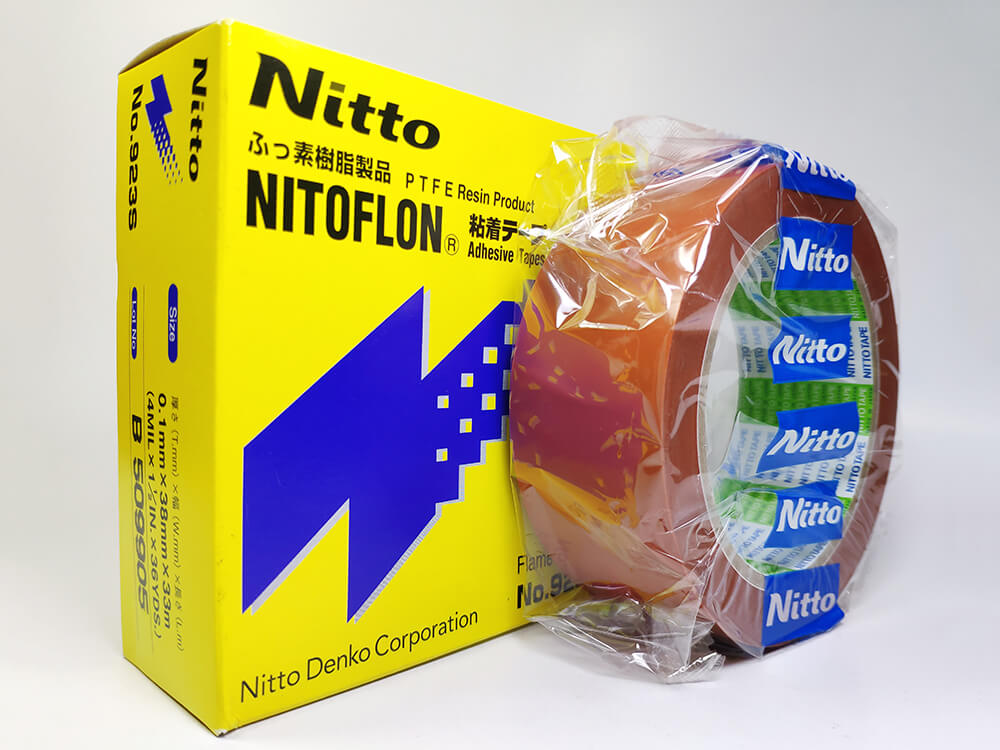

Nitto Heat-Resistant Tape - 923S is a premium adhesive tape designed for high-temperature and industrial applications. Featuring a non-adhesive PTFE-coated surface, it offers excellent electrical insulation, superior tensile strength, and remarkable heat and chemical resistance. This tape ensures durability and reliability in demanding environments.
Key Features:
- Excellent PTFE properties: electrical insulation, heat resistance, and non-adhesiveness.
- Superior tensile strength for long-lasting performance.
- Outstanding flame retardant capabilities (UL510 certified).
Additional Information
Uses:
- Sealing applications
- Masking during high-temperature processes
- Electrical insulation
- Lamination
- Wrapping polyethylene laminators
- Creating endless belts for laminators
- Heavy-duty packaging
- Reinforcing and fixing metallic and wooden parts
Applications:
- Polyethylene Laminators: Ideal for roll wrapping and endless belt applications.
- Class H Insulating Material: Suitable for coil insulation.
- General Sliding Materials: Can be laminated with metals, plastics, and ceramics.
Technical Data
| Content | Unit | Standard Value |
|---|---|---|
| Thickness | mm | 0.1 |
| Tensile Strength | N/19mm | 120 |
| Elongation | % | 50 |
| Peeling Strength (Stainless Steel) | N/19mm | 6.5 |
| Unwinding Force | N/19mm | 2.1 |
| Breakdown Voltage | KV | 11 |
| Flame Resistance | - | UL510 (File No.E34833) |
| Operating Temperature | °C | -60 ~ 200 |
Remarks: This data represents average test results and is not a guaranteed value. Consult with us before using for specification purposes.
Additional Information
| Uses | Industrial insulation, lamination, and sliding applications. |
|---|---|
| MOQ | As per requirement |
| Package Dimension and Weight: | Varies based on selected size |
| Availability: | Ready Stock / On Order |
