Product Specification
| ITEM CODE | BAU.10149127 |
|---|---|

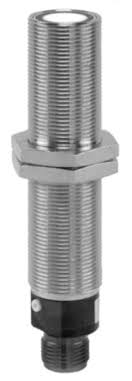

| ITEM NAME | Baumer Ultrasonic Distance Measuring Sensor UNAM 18U6903/S14 |
| DIMENSIONS | Width / Diameter: 18 mm, Height / Length: 90 mm |
| ITEM WEIGHT | (To be updated if available) |
| MATERIAL | Brass Nickel Plated |
| FINISH | Nickel Plated |
| BRAND | Baumer |
| Category: | Electrical Engineering > Sensor, Switch, and Pushbutton > Analog Sensor |
Product Description
The Baumer Ultrasonic Distance Measuring Sensor UNAM 18U6903/S14 is a highly precise and reliable component designed for accurate distance measurement. This sensor is ideal for various industrial applications where non-contact measurement is required.
- Scanning Range (Sd): 100 – 1000 mm
- Scanning Range Close Limit (Sdc): 100 – 1000 mm
- Scanning Range Far Limit (Sde): 100 – 1000 mm
- Repeat Accuracy: < 0.5 mm
- Resolution: < 0.3 mm
- Response Time (ton): < 80 ms
- Release Time (toff): < 80 ms
- Temperature Drift: < 2% of distance to target
- Sonic Frequency: 240 kHz
- Adjustment: Teach-in
- Alignment Aid: Target indication flashing
- Light Indicator: Yellow LED / Red LED
- Voltage Supply Range (+Vs): 15 – 30 VDC
- Current Consumption Max (No Load): 35 mA
- Output Circuit: Voltage Output
- Output Signal: 0 – 10 V / 10 – 0 V
- Output Current: < 20 mA
- Residual Ripple: < 10% Vs
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
- Type: Cylindrical Threaded
- Connection Type: Connector M12
- Operating Temperature: -10 to +60 °C
- Protection Class: IP67
Additional Information
| Uses: | Industrial automation, process control, and distance measurement applications. |
|---|---|
| MOQ | (To be updated) |
| Package Dimension and Weight: | (To be updated) |
| Availability: | In stock |
| Estimated Shipping Time: | (To be updated) |
